spring-balances, 281-101 - Precise, mechanical spring balances in robust aluminium housing with g/kg readout

Weighing capacity [Max]
10 g
;

Readability [d]
0,1 g
;

Net weight approx.
0,05 kg
;

Housing diameter (Ø)
12 mm
;

Length unloaded (l [Min])
220 mm
;

Length loaded (l [Max])
300 mm
;

Product family
281
;

Kods Nosaukums EUR ar PVN Daudzums

281_101 Spring Scale pasūtīt 145.18

spring-balances, 281-151 - Precise, mechanical spring balances in robust aluminium housing with g/kg readout

Weighing capacity [Max]
30 g
;

Readability [d]
0,25 g
;

Net weight approx.
0,05 kg
;

Housing diameter (Ø)
12 mm
;

Length unloaded (l [Min])
220 mm
;

Length loaded (l [Max])
300 mm
;

Product family
281
;

Kods Nosaukums EUR ar PVN Daudzums

281_151 Spring Scale pasūtīt 127.03

spring-balances, 281-301 - Precise, mechanical spring balances in robust aluminium housing with g/kg readout

Weighing capacity [Max]
100 g
;

Readability [d]
1 g
;

Net weight approx.
0,05 kg
;

Housing diameter (Ø)
12 mm
;

Length unloaded (l [Min])
220 mm
;

Length loaded (l [Max])
300 mm
;

Product family
281
;

Kods Nosaukums EUR ar PVN Daudzums

281_301 Spring Scale pasūtīt 128.24

spring-balances, 281-401 - Precise, mechanical spring balances in robust aluminium housing with g/kg readout

Weighing capacity [Max]
300 g
;

Readability [d]
2 g
;

Net weight approx.
0,05 kg
;

Housing diameter (Ø)
12 mm
;

Length unloaded (l [Min])
225 mm
;

Length loaded (l [Max])
325 mm
;

Product family
281
;

Kods Nosaukums EUR ar PVN Daudzums

281_401 Spring Scale pasūtīt 145.18

spring-balances, 281-451 - Precise, mechanical spring balances in robust aluminium housing with g/kg readout

Weighing capacity [Max]
600 g
;

Readability [d]
5 g
;

Net weight approx.
0,05 kg
;

Housing diameter (Ø)
12 mm
;

Length unloaded (l [Min])
225 mm
;

Length loaded (l [Max])
325 mm
;

Product family
281
;

Kods Nosaukums EUR ar PVN Daudzums

281_451 Spring Scale pasūtīt 154.86

spring-balances, 281-601 - Precise, mechanical spring balances in robust aluminium housing with g/kg readout

Weighing capacity [Max]
1000 g
;

Readability [d]
10 g
;

Net weight approx.
0,05 kg
;

Housing diameter (Ø)
12 mm
;

Length unloaded (l [Min])
225 mm
;

Length loaded (l [Max])
325 mm
;

Product family
281
;

Kods Nosaukums EUR ar PVN Daudzums

281_601 Spring Scale pasūtīt 175.44

spring-balances, 281-752 - Precise, mechanical spring balances in robust aluminium housing with g/kg readout

Weighing capacity [Max]
2500 g
;

Readability [d]
20 g
;

Net weight approx.
0,05 kg
;

Housing diameter (Ø)
12 mm
;

Length unloaded (l [Min])
225 mm
;

Length loaded (l [Max])
325 mm
;

Product family
281
;

Kods Nosaukums EUR ar PVN Daudzums

281_752 Spring Scale pasūtīt 163.34

spring-balances, 283-252 - Precise, mechanical force gauge in robust aluminium housing with Newton readout

Measuring range force [Max] (N)
3 N
;

Readability force [d] (N)
0,02 N
;

Tolerance (% of [Max])
0,3%
;

Load support (tensile force)
Hook
;

Length unloaded (l [Min])
225 mm
;

Length loaded (l [Max])
325 mm
;

Housing diameter (Ø)
12 mm
;

Dimensions completely mounted (W×D×H)
225×12×12 mm
;

Material housing
aluminium
;

Kods Nosaukums EUR ar PVN Daudzums

283_252 Mechanical force gauge pasūtīt 154.86

spring-balances, 283-402 - Precise, mechanical force gauge in robust aluminium housing with Newton readout

Measuring range force [Max] (N)
10 N
;

Readability force [d] (N)
0,1 N
;

Tolerance (% of [Max])
0,3%
;

Load support (tensile force)
Hook
;

Length unloaded (l [Min])
225 mm
;

Length loaded (l [Max])
325 mm
;

Housing diameter (Ø)
12 mm
;

Dimensions completely mounted (W×D×H)
225×12×12 mm
;

Material housing
aluminium
;

Kods Nosaukums EUR ar PVN Daudzums

283_402 Mechanical force gauge pasūtīt 151.23

spring-balances, 283-502 - Precise, mechanical force gauge in robust aluminium housing with Newton readout

Measuring range force [Max] (N)
100 N
;

Readability force [d] (N)
1 N
;

Tolerance (% of [Max])
0,3%
;

Load support (tensile force)
Hook
;

Length unloaded (l [Min])
370 mm
;

Length loaded (l [Max])
510 mm
;

Housing diameter (Ø)
32 mm
;

Dimensions completely mounted (W×D×H)
225×12×12 mm
;

Material housing
aluminium
;

Kods Nosaukums EUR ar PVN Daudzums

283_502 Mechanical force gauge pasūtīt 314.59

spring-balances, 283-902 - Precise, mechanical force gauge in robust aluminium housing with Newton readout

Measuring range force [Max] (N)
500 N
;

Readability force [d] (N)
5 N
;

Tolerance (% of [Max])
0,3%
;

Load support (tensile force)
Hook
;

Length unloaded (l [Min])
370 mm
;

Length loaded (l [Max])
510 mm
;

Housing diameter (Ø)
32 mm
;

Dimensions completely mounted (W×D×H)
370×32×32 mm
;

Material housing
aluminium
;

Kods Nosaukums EUR ar PVN Daudzums

283_902 Mechanical force gauge pasūtīt 387.19

spring-balances, 289-104 - Mechanical weight and force measurement with quality spring for long service life

Measuring range force [Max] (N)
10 N
;

Readability force [d] (N)
0,1 N; 0,5 N
;

Tolerance (% of [Max])
0,3%
;

Load support (tensile force)
Hook
;

Length unloaded (l [Min])
235 mm
;

Length loaded (l [Max])
335 mm
;

Housing diameter (Ø)
12,2 mm
;

Dimensions completely mounted (W×D×H)
220×10×10 mm
;

Material housing
plastic
;

Kods Nosaukums EUR ar PVN Daudzums

289_104 Mechanical force gauge pasūtīt 111.31

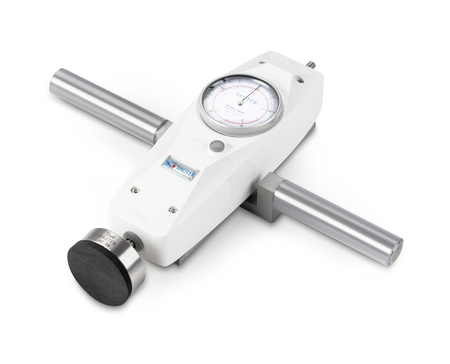

tombstone-testers, FA-500G - Mechanical tombstone tester

Measuring range force [Max] (N)
500 N
;

Readability force [d] (N)
2,5 N
;

Tolerance (% of [Max])
1%
;

Peak function

;

Material housing
plastic
;

Dimensions completely mounted (W×D×H)
232×60×51 mm
;

Net weight approx.
1,8 kg
;

GTIN/EAN number
4045761126787
;

Kods Nosaukums EUR ar PVN Daudzums

FA_500G Gravestone Tester pasūtīt 429.54

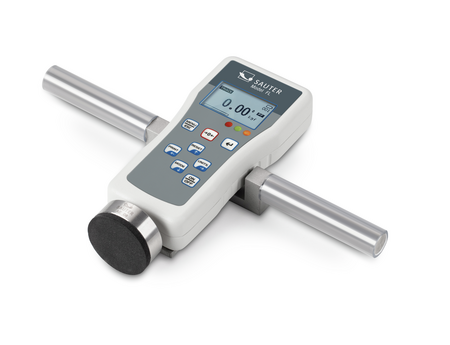

tombstone-testers, FL-1KG - Electronic tombstone tester for professional applications

Measuring range force [Max] (N)
1 kN
;

Readability force [d] (N)
0,5 N
;

Tolerance (% of [Max])
0,2%
;

Measuring head measuring frequency
1000 Hz
;

Number of platforms / channels
1
;

Supplied power supply
Accu & Power supply
;

Rechargeable battery
4,8 V 750 mA
;

Memory function

;

Limit-setting function

;

Kods Nosaukums EUR ar PVN Daudzums

FL_1KG Gravestone Tester pasūtīt 980.06

tombstone-testers, FL-500G - Electronic tombstone tester for professional applications

Measuring range force [Max] (N)
500 N
;

Readability force [d] (N)
0,2 N
;

Tolerance (% of [Max])
0,2%
;

Measuring head measuring frequency
1000 Hz
;

Number of platforms / channels
1
;

Supplied power supply
Accu & Power supply
;

Rechargeable battery
4,8 V 750 mA
;

Memory function

;

Limit-setting function

;

Kods Nosaukums EUR ar PVN Daudzums

FL_500G Gravestone Tester pasūtīt 834.86

tombstone-testers, FS-500G - Electronic tombstone tester for professional applications

Measuring range force [Max] (N)
500 N
;

Readability force [d] (N)
0,1 N
;

Tolerance (% of [Max])
0,1%
;

Measuring head measuring frequency
1000 Hz
;

Supplied power supply
Accu & Power supply
;

Memory function

;

Statistic function

;

Peak function

;

Material housing
plastic
;

Kods Nosaukums EUR ar PVN Daudzums

FS_500G Gravestone Tester pasūtīt 1403.54

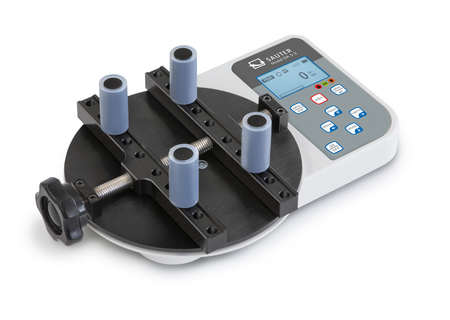

torque-gauges, DA-1-4 - Comfortable testing of screw tops, e.g. bottles, jars etc.

Measuring range torque
0,05 Nm – 1 Nm
;

Readability torque [d] (Nm)
0,2 mNm
;

Tolerance (% of [Max])
0,5%
;

Units
Nm, kgf/cm, kgf/m, in/lbs, ft/lbs
;

Test object diameter [Max]
16 cm
;

Overload protection (% of [Max])
120%
;

Memory function

;

Internal data memory: Number of individual values
500
;

Peak function

;

Kods Nosaukums EUR ar PVN Daudzums

DA_1_4 Torque gauge pasūtīt 2395.85

torque-gauges, DA-10-3 - Comfortable testing of screw tops, e.g. bottles, jars etc.

Measuring range torque
0,5 Nm – 10 Nm
;

Readability torque [d] (Nm)
0,002 Nm
;

Tolerance (% of [Max])
0,5%
;

Units
Nm, kgf/cm, kgf/m, in/lbs, ft/lbs
;

Test object diameter [Max]
16 cm
;

Overload protection (% of [Max])
120%
;

Memory function

;

Internal data memory: Number of individual values
500
;

Peak function

;

Kods Nosaukums EUR ar PVN Daudzums

DA_10_3 Torque gauge pasūtīt 2383.75

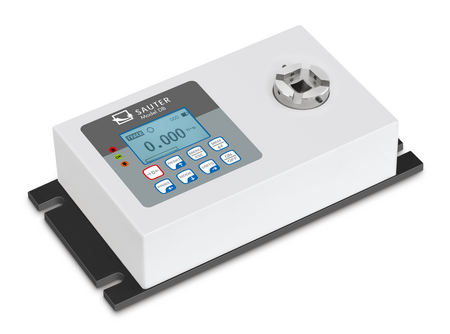

torque-gauges, DB-0-5-4 - Convenient way to test the torque of tools

Measuring range torque
0,025 Nm – 0,5 Nm
;

Readability torque [d] (Nm)
0,1 mNm
;

Tolerance (% of [Max])
0,5%
;

Units
Nm, kgf/cm, kgf/m, in/lbs, ft/lbs
;

Supported torque pickups
20 mm, 3/8
;

Overload protection (% of [Max])
120%
;

Memory function

;

Internal data memory: Number of individual values
500
;

Peak function

;

Kods Nosaukums EUR ar PVN Daudzums

DB_0.5_4 Torque gauge pasūtīt 2141.75

torque-gauges, DB-1-4 - Convenient way to test the torque of tools

Measuring range torque
0,05 Nm – 1 Nm
;

Readability torque [d] (Nm)
0,2 mNm
;

Tolerance (% of [Max])
0,5%
;

Units
Nm, kgf/cm, kgf/m, in/lbs, ft/lbs
;

Supported torque pickups
20 mm, 3/8
;

Overload protection (% of [Max])
120%
;

Memory function

;

Internal data memory: Number of individual values
500
;

Peak function

;

Kods Nosaukums EUR ar PVN Daudzums

DB_1_4 Torque gauge pasūtīt 2141.75

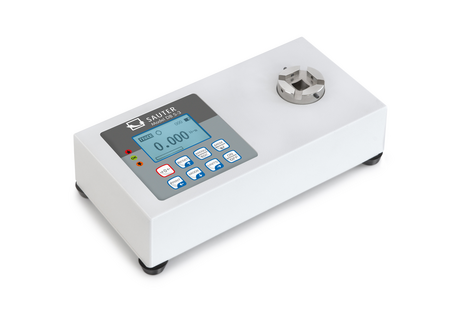

torque-gauges, DB-10-3 - Convenient way to test the torque of tools

Measuring range torque
0,5 Nm – 10 Nm
;

Readability torque [d] (Nm)
0,002 Nm
;

Tolerance (% of [Max])
0,5%
;

Units
Nm, kgf/cm, kgf/m, in/lbs, ft/lbs
;

Supported torque pickups
20 mm, 3/8
;

Overload protection (% of [Max])
120%
;

Memory function

;

Internal data memory: Number of individual values
500
;

Peak function

;

Kods Nosaukums EUR ar PVN Daudzums

DB_10_3 Torque gauge pasūtīt 2141.75

torque-gauges, DB-100-2 - Convenient way to test the torque of tools

Measuring range torque
5 Nm – 100 Nm
;

Readability torque [d] (Nm)
0,02 Nm
;

Tolerance (% of [Max])
0,5%
;

Units
Nm, kgf/cm, kgf/m, in/lbs, ft/lbs
;

Supported torque pickups
3/8
;

Overload protection (% of [Max])
120%
;

Memory function

;

Internal data memory: Number of individual values
500
;

Peak function

;

Kods Nosaukums EUR ar PVN Daudzums

DB_100_2 Torque gauge pasūtīt 2432.15

torque-gauges, DB-20-3 - Convenient way to test the torque of tools

Measuring range torque
1 Nm – 20 Nm
;

Readability torque [d] (Nm)
0,005 Nm
;

Tolerance (% of [Max])
0,5%
;

Units
Nm, kgf/cm, kgf/m, in/lbs, ft/lbs
;

Supported torque pickups
20 mm, 3/8
;

Overload protection (% of [Max])
120%
;

Memory function

;

Internal data memory: Number of individual values
500
;

Peak function

;

Kods Nosaukums EUR ar PVN Daudzums

DB_20_3 Torque gauge pasūtīt 2432.15

torque-gauges, DB-200-2 - Convenient way to test the torque of tools

Measuring range torque
10 Nm – 200 Nm
;

Readability torque [d] (Nm)
0,05 Nm
;

Tolerance (% of [Max])
0,5%
;

Units
Nm, kgf/cm, kgf/m, in/lbs, ft/lbs
;

Supported torque pickups
1/2
;

Overload protection (% of [Max])
120%
;

Memory function

;

Internal data memory: Number of individual values
500
;

Peak function

;

Kods Nosaukums EUR ar PVN Daudzums

DB_200_2 Torque gauge pasūtīt 2432.15

torque-gauges, DB-5-3 - Convenient way to test the torque of tools

Measuring range torque
0,25 Nm – 5 Nm
;

Readability torque [d] (Nm)
0,001 Nm
;

Tolerance (% of [Max])
0,5%
;

Units
Nm, kgf/cm, kgf/m, in/lbs, ft/lbs
;

Supported torque pickups
20 mm, 3/8
;

Overload protection (% of [Max])
120%
;

Memory function

;

Internal data memory: Number of individual values
500
;

Peak function

;

Kods Nosaukums EUR ar PVN Daudzums

DB_5_3 Torque gauge pasūtīt 2141.75

torque-gauges, DB-50-2 - Convenient way to test the torque of tools

Measuring range torque
2,5 Nm – 50 Nm
;

Readability torque [d] (Nm)
0,01 Nm
;

Tolerance (% of [Max])
0,5%
;

Units
Nm, kgf/cm, kgf/m, in/lbs, ft/lbs
;

Supported torque pickups
20 mm, 3/8
;

Overload protection (% of [Max])
120%
;

Memory function

;

Internal data memory: Number of individual values
500
;

Peak function

;

Kods Nosaukums EUR ar PVN Daudzums

DB_50_2 Torque gauge pasūtīt 2432.15

torque-gauges, DB-500-2 - Convenient way to test the torque of tools

Measuring range torque
25 Nm – 500 Nm
;

Readability torque [d] (Nm)
0,1 Nm
;

Tolerance (% of [Max])
0,5%
;

Units
Nm, kgf/cm, kgf/m, in/lbs, ft/lbs
;

Supported torque pickups
3/4
;

Overload protection (% of [Max])
120%
;

Memory function

;

Internal data memory: Number of individual values
500
;

Peak function

;

Kods Nosaukums EUR ar PVN Daudzums

DB_500_2 Torque gauge pasūtīt 2432.15

adapter, AFM-13 - Threaded pin made of steel for SAUTER force gauges and clamps, external thread: M12, internal thread: M6

Material
steel
;

Net weight approx.
0,05 kg
;

Mounting - force application
External thread M6
;

Mounting - force dissipation
Threaded hole M12
;

Scope of delivery
HASH(0x558eaca443c0)
;

GTIN/EAN number
4045761244931
;

Kods Nosaukums EUR ar PVN Daudzums

AFM_13 Adapter pasūtīt 21.76

base-plates, CE-Q30903 - Base plate. Galvanised steel

Material
steel, galvanized
;

Net weight approx.
3,0 kg
;

Scope of delivery
HASH(0x55cd5bd46318)
;

GTIN/EAN number
4045761221727
;

Kods Nosaukums EUR ar PVN Daudzums

CE_Q30903 Base plate pasūtīt 120.98

base-plates, CE-Q34903 - Base plate. Galvanised steel

Material
steel, galvanized
;

Net weight approx.
3,0 kg
;

Scope of delivery
HASH(0x55cd5be7b158)
;

GTIN/EAN number
4045761221789
;

Kods Nosaukums EUR ar PVN Daudzums

CE_Q34903 Base plate pasūtīt 114.93

base-plates, CE-RQ30903 - Base plate. Stainless steel

Material
steel, stainless
;

Net weight approx.
3,0 kg
;

Scope of delivery
HASH(0x55cd5bcf2ed0)
;

GTIN/EAN number
4045761221864
;

Kods Nosaukums EUR ar PVN Daudzums

CE_RQ30903 Base plate pasūtīt 229.88

base-plates, CE-RQ34903 - Base plate. Stainless steel

Material
steel, stainless
;

Net weight approx.
3,0 kg
;

Scope of delivery
HASH(0x55cd5bd678c0)
;

GTIN/EAN number
4045761221888
;

Kods Nosaukums EUR ar PVN Daudzums

CE_RQ34903 Base plate pasūtīt 241.98

base-plates, CE-RQ35911 - Base plate. Stainless steel

Material
steel, stainless
;

Net weight approx.
3,2 kg
;

Scope of delivery
HASH(0x55cd5a4299a8)
;

GTIN/EAN number
4045761221932
;

Kods Nosaukums EUR ar PVN Daudzums

CE_RQ35911 Base plate pasūtīt 241.98

base-plates, CE-RQ35912 - Base plate. Stainless steel

Material
steel, stainless
;

Net weight approx.
6 kg
;

Scope of delivery
HASH(0x55cd5a439660)
;

GTIN/EAN number
4045761221949
;

Kods Nosaukums EUR ar PVN Daudzums

CE_RQ35912 Base plate pasūtīt 241.98

bending-device, AD-9300 - 3-point bending device with interchangeable attachments

Material
aluminium
;

Tensile/compressive force [Max]
20 kN
;

Net weight approx.
2,0 kg
;

Mounting - force dissipation
Threaded hole M6, External thread M12
;

Scope of delivery
1 piece
;

GTIN/EAN number
4045761178632
;

Kods Nosaukums EUR ar PVN Daudzums

AD_9300 Bending device pasūtīt 4114.08

bending-device, AD-9302 - 3-point bending device with interchangeable attachments

Material
steel
;

Tensile/compressive force [Max]
20 kN
;

Net weight approx.
2,0 kg
;

Mounting - force dissipation
Threaded hole M6, External thread M12
;

Scope of delivery
1 piece
;

GTIN/EAN number
4045761225701
;

Kods Nosaukums EUR ar PVN Daudzums

AD_9302 Bending device pasūtīt 3206.56

bending-device, AD-9305 - 3-point bending device with interchangeable attachments

Material
steel
;

Tensile/compressive force [Max]
20 kN
;

Net weight approx.
1,6 kg
;

Mounting - force dissipation
Threaded hole M6, External thread M12
;

Scope of delivery
1 piece
;

GTIN/EAN number
4045761178649
;

Kods Nosaukums EUR ar PVN Daudzums

AD_9305 Bending device pasūtīt 3835.77

bending-device, AD-9310 - 3-point bending device with interchangeable attachments

Material
steel
;

Tensile/compressive force [Max]
20 kN
;

Net weight approx.
2,0 kg
;

Mounting - force dissipation
Threaded hole M6, External thread M12
;

Scope of delivery
1 piece
;

GTIN/EAN number
4045761178656
;

Kods Nosaukums EUR ar PVN Daudzums

AD_9310 Bending device pasūtīt 4477.08

bending-device, AD-9315 - 3-point bending device with interchangeable attachments

Material
aluminium
;

Tensile/compressive force [Max]
10 kN
;

Net weight approx.
1,6 kg
;

Mounting - force dissipation
Threaded hole M6, External thread M12
;

Scope of delivery
1 piece
;

GTIN/EAN number
4045761178663
;

Kods Nosaukums EUR ar PVN Daudzums

AD_9315 Bending device pasūtīt 4198.78

clamps, AC-01 - Screw Tension Clamp for tension and rupture tests

Tensile/compressive force [Max]
500 N
;

Maximum clamp width
20 mm
;

Clamping width
20 mm
;

Material
steel
;

Net weight
0,43 kg
;

Mounting - force dissipation
Threaded hole M6
;

Dimensions completely mounted (W×D×H)
75×65×20 mm
;

Stück je Verkaufseinheit
2
;

Kods Nosaukums EUR ar PVN Daudzums

AC_01 Screw tension clamp with jaws pasūtīt 166.97

clamps, AC-02 - Ball-shaped head made of nickel-plated-steel for compression and fracture tests

Material
metal
;

Material housing
metal
;

Tensile/compressive force [Max]
5 kN
;

Net weight approx.
0,05 kg
;

Mounting - force dissipation
Threaded hole M10, Threaded hole M6
;

Scope of delivery
HASH(0x558eac92b8f8)
;

GTIN/EAN number
4045761121751
;

Kods Nosaukums EUR ar PVN Daudzums

AC_02 Ball-shaped head pasūtīt 78.63

clamps, AC-03 - Screw Tension Clamp for tension tests

Tensile/compressive force [Max]
5 kN
;

Maximum clamp width
20 mm
;

Clamping width
4,5 mm
;

Material
steel
;

Net weight
0,56 kg
;

Mounting - force dissipation
Threaded hole M6
;

Dimensions completely mounted (W×D×H)
50×41×34 mm
;

Stück je Verkaufseinheit
2
;

Kods Nosaukums EUR ar PVN Daudzums

AC_03 Screw tension clamp with jaws pasūtīt 182.69

clamps, AC-11R - Rolling-clamp attachment for tension and rupture tests up to 5 kN, thread: M10

Tensile/compressive force [Max]
5 kN
;

Maximum clamp width
50 mm
;

Clamping width
4 mm
;

Material
steel
;

Net weight
0,225 kg
;

Mounting - force dissipation
Threaded hole M10
;

Kods Nosaukums EUR ar PVN Daudzums

AC_11R Roller Tension Clamp pasūtīt 96.78

clamps, AC-12 - Universal 2-jaw grip for tension and rupture tests

Tensile/compressive force [Max]
5 kN
;

Maximum clamp width
25 mm
;

Clamping width
5 mm
;

Material
steel
;

Net weight
0,96 kg
;

Mounting - force dissipation
External thread M10
;

Dimensions completely mounted (W×D×H)
110×80×25 mm
;

Stück je Verkaufseinheit
2
;

Kods Nosaukums EUR ar PVN Daudzums

AC_12 Screw tension clamp with jaws pasūtīt 114.93

clamps, AC-14 - Standard Screw Tension Clamp for tension and rupture tests

Tensile/compressive force [Max]
500 N
;

Maximum clamp width
16 mm
;

Clamping width
4 mm
;

Material
steel
;

Net weight
0,2 kg
;

Mounting - force dissipation
Threaded hole M6
;

Dimensions completely mounted (W×D×H)
40×36×16 mm
;

Stück je Verkaufseinheit
2
;

Kods Nosaukums EUR ar PVN Daudzums

AC_14 Screw tension clamp with jaws pasūtīt 79.84

clamps, AC-17 - Long clamp for tension and rupture tests

Tensile/compressive force [Max]
500 N
;

Maximum clamp width
8 mm
;

Clamping width
2,5 mm
;

Material
steel
;

Net weight
0,027 kg
;

Mounting - force dissipation
Threaded hole M6
;

Dimensions completely mounted (W×D×H)
8×40×18,5 mm
;

Directions of force
tension
;

Stück je Verkaufseinheit
2
;

Kods Nosaukums EUR ar PVN Daudzums

AC_17 Screw tension clamp with jaws pasūtīt 163.34

clamps, AC-18 - Screw tension clamp with 2 wide jaw grips for tension and extraction tests

Tensile/compressive force [Max]
5 kN
;

Maximum clamp width
60 mm
;

Clamping width
33 mm
;

Material
steel
;

Net weight
0,743 kg
;

Mounting - force dissipation
External thread M10
;

Dimensions completely mounted (W×D×H)
160×100×140 mm
;

Stück je Verkaufseinheit
2
;

Kods Nosaukums EUR ar PVN Daudzums

AC_18 Screw tension clamp with jaws pasūtīt 188.74

clamps, AC-22 - Standard Screw Tension Clamp for tension and rupture tests

Tensile/compressive force [Max]
500 N
;

Maximum clamp width
30 mm
;

Clamping width
3 mm
;

Material
steel
;

Net weight
0,22 kg
;

Mounting - force dissipation
Threaded hole M6
;

Dimensions completely mounted (W×D×H)
60×38×30 mm
;

Stück je Verkaufseinheit
2
;

Kods Nosaukums EUR ar PVN Daudzums

AC_22 Screw tension clamp with jaws pasūtīt 166.97

clamps, AC-22R - Standard Screw Tension Clamp for tension and rupture tests

Tensile/compressive force [Max]
500 N
;

Maximum clamp width
30 mm
;

Clamping width
3 mm
;

Material
steel
;

Net weight
0,115 kg
;

Mounting - force dissipation
Threaded hole M6
;

Stück je Verkaufseinheit
1
;

Kods Nosaukums EUR ar PVN Daudzums

AC_22R Screw tension clamp with jaws pasūtīt 95.57

clamps, AC-41 - Eccentric roll clamp in particular for cable tests up to 5 kN, 10×30 mm slotted hole, clamping width: 9 mm

Tensile/compressive force [Max]
5 kN
;

Clamping width
9 mm
;

Material
steel
;

Net weight
0,8 kg
;

Dimensions completely mounted (W×D×H)
80×60×60 mm
;

Kods Nosaukums EUR ar PVN Daudzums

AC_41 Roller Tension Clamp pasūtīt 290.39

1 2 3 4 5 6 7 8

Santaks Sia. LV40003337173. Jur. adrese: Upmalas iela 4, Sunīši, Garkalnes pagasts, Ropažu novads, LV-2137. Fiz. adrese: Dzirnavu 43-8, Rīga, Latvija, LV-1010. Tālrunis: 67542997, 20111113, e-mail: santaks@inbox.lv Bezmaksas piegāde Rīgas rajonā jau nākamaja dienā, pārējas Latvijas pilsētās 5 darba dienu laikā.
